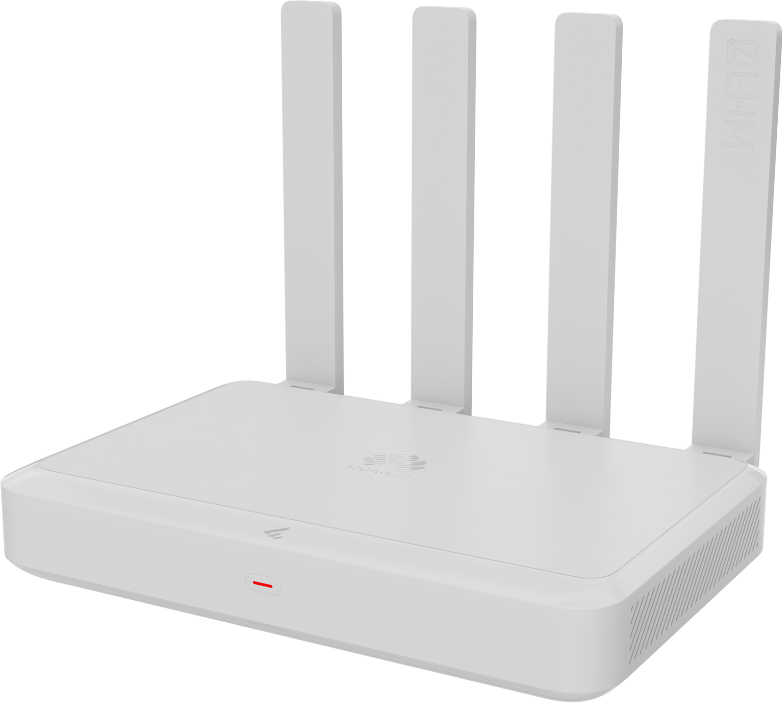

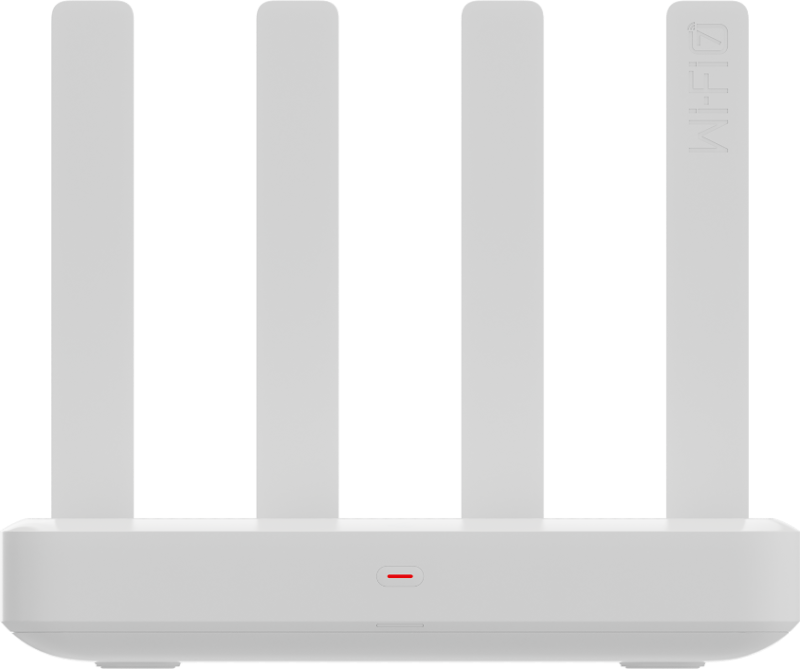

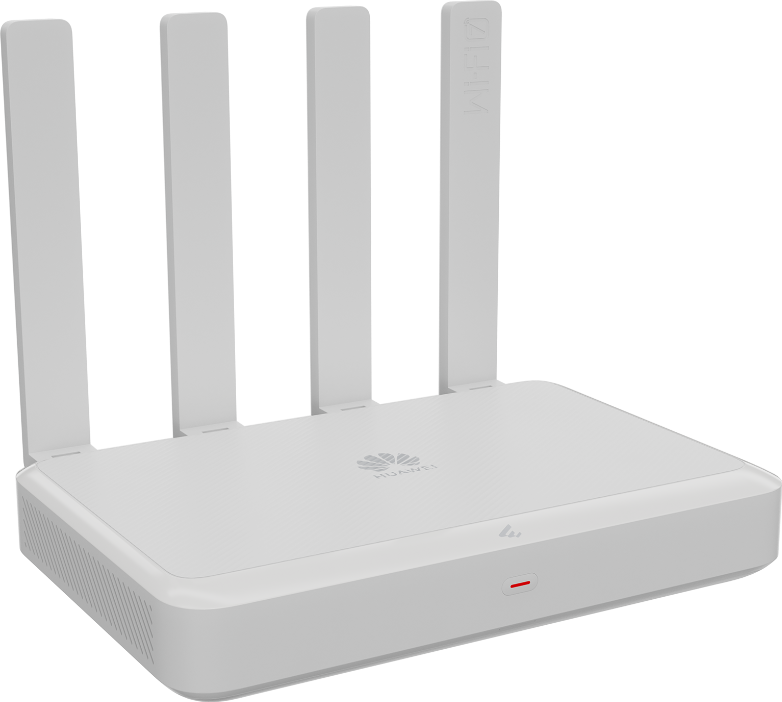

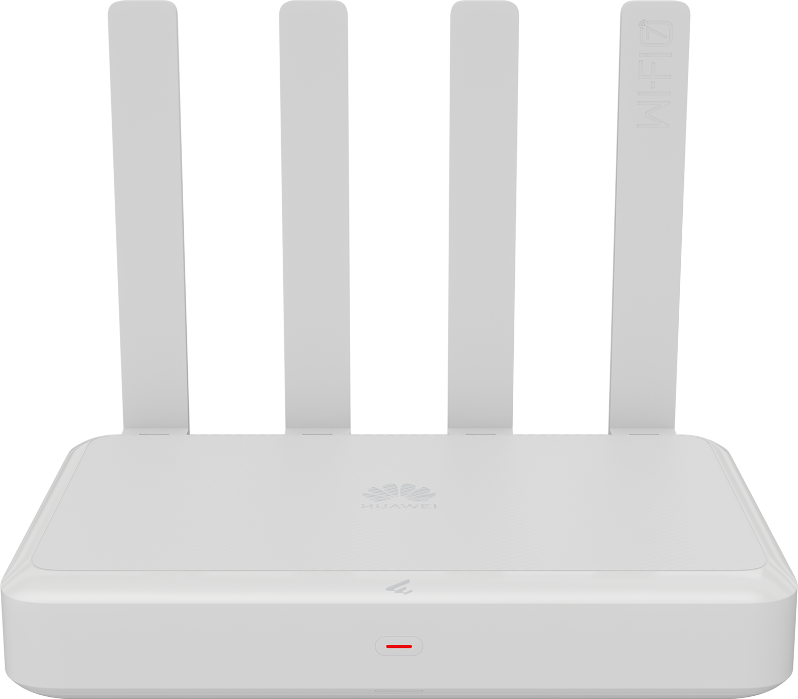

AR180
AR180
Part number: 50010839
Enterprise-Grade Wireless Router | Wi-Fi 7 | Number of IPSec Tunnels: 8 | Plastic, White | Number of Managed APs: 8 | Number of Managed Devices: 9 | Number of connected terminals: 100 | Egress Bandwidth: 2Gbps | VPN Forwarding Performance: 200Mbps | 4 GE Electrical Ports + 1 2.5GE Electrical Port
Product specifications
Installation typeWork bench,Against the wall
Dimensions without packaging (H x W x D) [mm(in.)]- Basic dimensions: 35 mm x 195 mm x 130 mm (1.38 in. x 7.68 in. x 5.12 in.) - Maximum dimensions: 163 mm x 195 mm x 150 mm (6.42 in. x 7.68 in. x 5.91 in.)
Chassis height [U]0.8
Dimensions with packaging (H x W x D) [mm(in.)]90 mm x 230 mm x 185 mm (3.54 in. x 9.06 in. x 7.28 in.)
Weight with packaging [kg(lb)]0.99 kg (2.18 lb)
Weight without packaging [kg(lb)]0.63 kg (1.39 lb)
CPU1.3 GHz, dual-core
Maximum power consumption [W]13
Power supply modeAC power adapter
Number of power modules1
Rated input voltage [V]110 V AC–220 V AC; 50/60 Hz
Input voltage range [V]90 V AC–264 V AC; 45 Hz–65 Hz
Maximum output power [W]24 W
Safety regulation certificationIEC/EN/UL 62368-1 GB 4943.1 CSA C22.2 No. 62368-1 AS/NZS 62368-1
EMC certificationEN 55032 EN 55035 EN 300386 EN 61000-3-2 EN 61000-3-3 EN 301 489-1 EN 301 489-17 ICES-003 AS/NZS CIPSR32 VCCI-CIPSR32 GB/T 9254.1 FCC CFR47 part 15
Heat dissipation modeNatural heat dissipation
Long-term operating temperature [°C(°F)]0°C to 40°C (32°F to 104°F) Note: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]5% RH to 95% RH, non-condensing

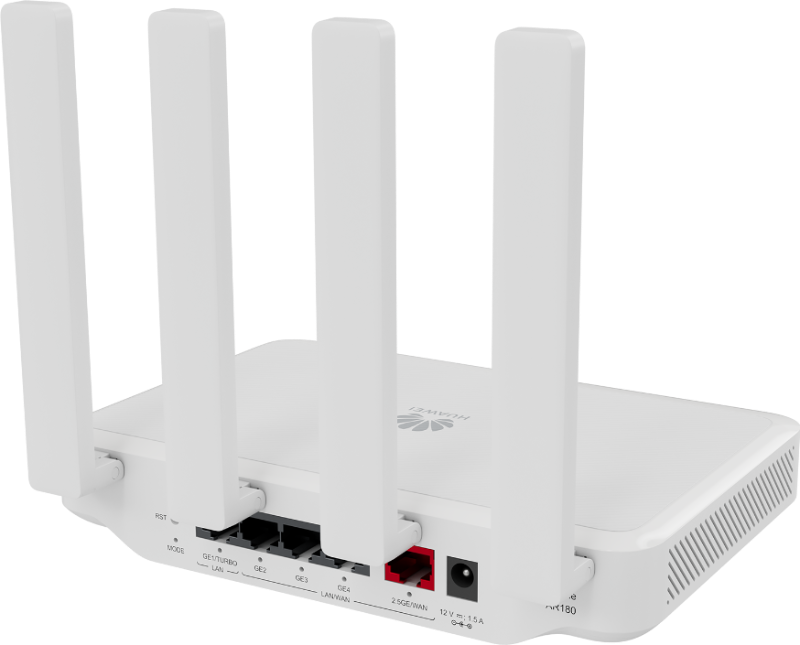

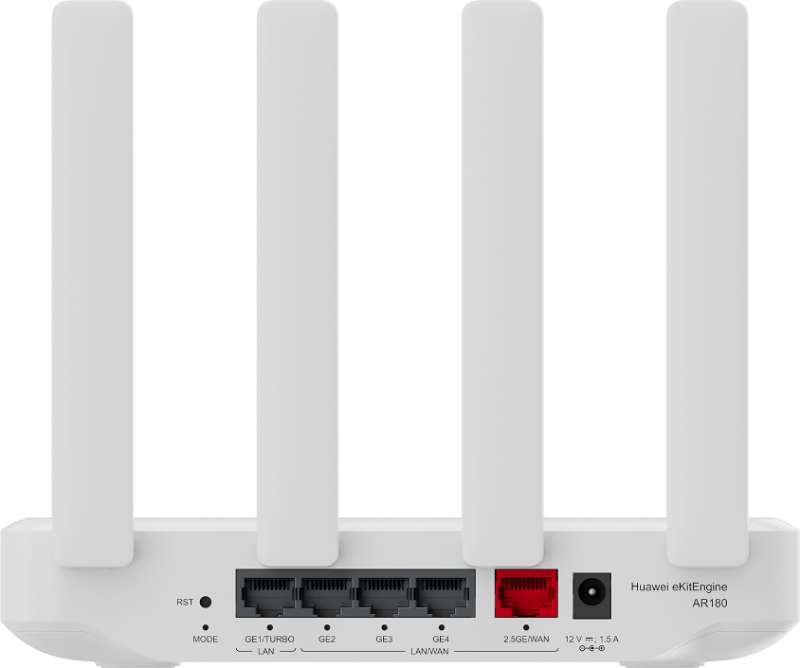

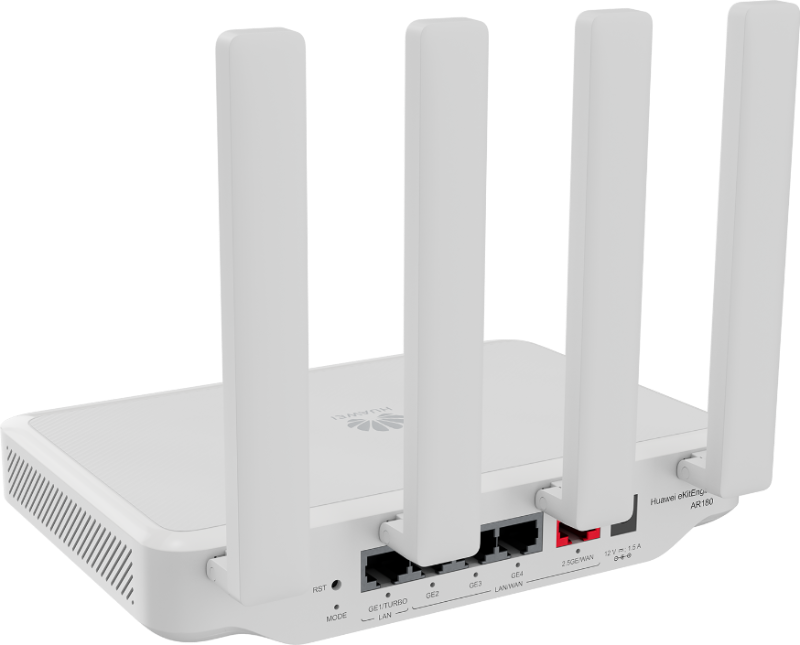

LAN ports4 x GE electrical interfaces
WAN ports1 x 2.5GE electrical port
AirflowNatural heat dissipation
Environmental standards complianceEN 300 019-2 IEC 60068-2
Overtemperature alarmSupported
GE RJ454 (1G/100M/10M)
2.5GE RJ451 (2.5G/1G/100M/10M)
CertificationEMC certification Safety certification Manufacturing certification
Typical power consumption [W]7
