HUAWEI eKit S110-8P2ST-V2

Product

Product/

SME Network/

Switch/

S110-8P2ST-V2

Part number: 98013167

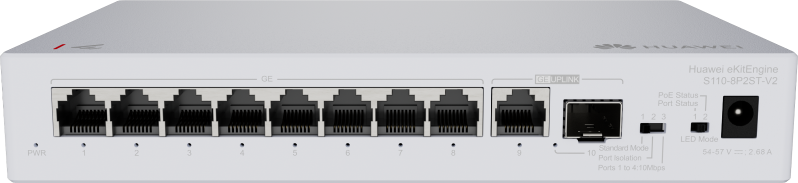

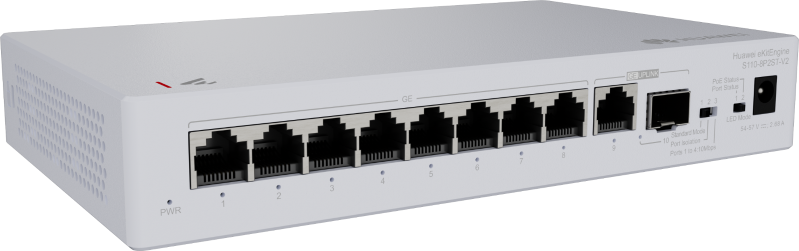

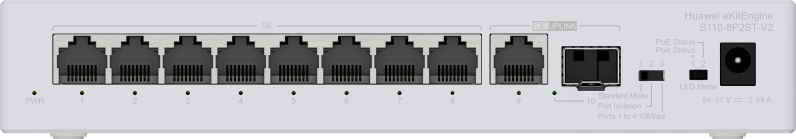

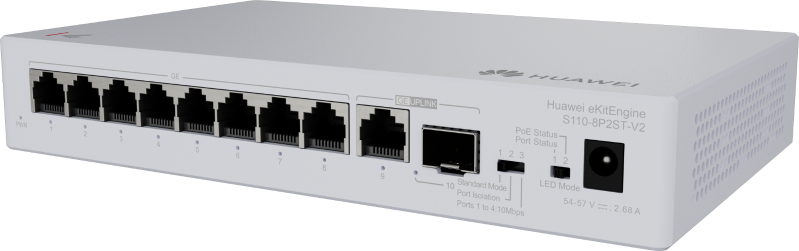

S110-8P2ST-V2 (8*10/100/1000BASE-T ports(124W PoE+), 1*GE SFP port, 1*10/100/1000BASE-T port, with 1*AC power adapter, fanless)

Product specifications

Certification	EMC certification Safety certification Manufacturing certification
Chassis material	PC+ABS
MAC address entry	4K
Working mode	Standard Mode, Port Isolation, Ports 1 to 4: 10 Mbps
Switching capacity	For more details, see the datasheet/brochure or contact product sales personnel. You can obtain the datasheet/brochure from the following link: https://ekit.huawei.com
Packet forwarding rate	For more details, see the datasheet/brochure or contact product sales personnel. You can obtain the datasheet/brochure from the following link: https://ekit.huawei.com
Static power consumption [W]	2.7
GE RJ45	9 (8 PoE+) (1G/100M/10M)
GE SFP	1 (1G/100M)
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 35 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 36.5 mm x 210.0 mm x 131.7 mm (1.44 in. x 8.27 in. x 5.19 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	150.0 mm x 270.0 mm x 200.0 mm (5.91 in. x 10.63 in. x 7.87 in.)
Chassis height [U]	0.8
Installation type	Desk mounting,Wall mounting
Weight without packaging [kg(lb)]	0.91 kg (2.01 lb)
Weight with packaging [kg(lb)]	1.26 kg (2.78 lb)
Typical power consumption [W]	8.2
Typical heat dissipation [BTU/hour]	27.98
Maximum power consumption [W]	Without PoE: 8.4 W Full PoE load: 142 W (PoE: 124 W)
Maximum heat dissipation [BTU/hour]	Without PoE: 28.66 Full PoE load: 484.52
MTBF [years]	78.77
MTTR [hours]	2
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at high temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans), < 20
Maximum number of physical ports on the entire device	10
Maximum number of GE ports	10
Maximum number of FE ports	10
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage [V]	Power adapter input: 170 V AC to 240 V AC; 50/60 Hz Power adapter output: 54 V DC
Input voltage range [V]	Power adapter input: 170 V AC to 264 V AC; 47 Hz to 63 Hz
Maximum input current [A]	2.78 A
Service port surge protection [kV]	Common mode: ±4 kV
Power supply surge protection [kV]	±4 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	None
Heat dissipation mode	Natural heat dissipation
PoE	Supported
Maximum PoE power consumption [W]	124
PoE+ power interfaces	8
Full load PoE power consumption 30W (802.3at)	4
Full load PoE power consumption 15.4W (802.3af)	8
