Outdoor AP| Wi-Fi 7 | 6.45 Gbps device rate | Dual-radio | 130 access users recommended | Max. 1024 access users | 30 dBm transmit power | 250 m optimal coverage distance
Wi-Fi standard
2.4 GHz: 802.11b/g/n/ax/be
5 GHz:802.11a/n/ac/ac Wave 2/ax/be
Installation Type
Wall,Pole
Optimal Signal Distance (m)
250
Max Number of Access Users
1024
Recommended Number of Access Users
130
Maximum number of physical ports on the entire device

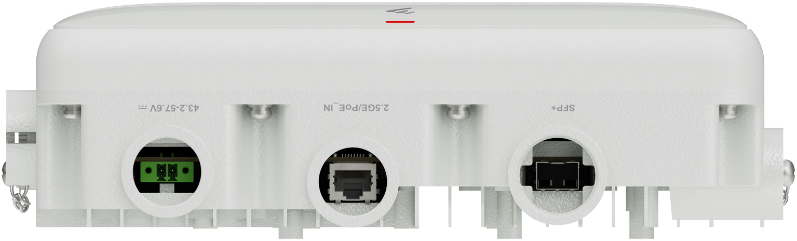

2.5GE (RJ45) x 1, 100M/1000M/2500M auto-sensing
10GE optical (SFP+), GE/2.5GE/10GE auto-sensing
Maximum channel bandwidth [MHz]
Radio 0 (2.4 GHz): 40 MHz
Radio 1 (5 GHz): 160 MHz
Maximum transmit power
2.4 GHz:
25 dBm/chain
28 dBm (combined power)
5 GHz:
24 dBm/chain
30 dBm (combined power)
MIMO spatial streams
Radio 0 (2.4 GHz): 2x2
Radio 1 (5 GHz): 4x4
Maximum power consumption [W]
20.4 (excluding USB)
Input voltage range [V]
DC: 43.2 V to 57.6 V
PoE: 802.3bt/at/af
Dimensions without packaging (H x W x D) [mm(in.)]
220 mm x 250 mm x 77 mm (8.66 in. x 9.84 in. x 3.03 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
170 mm x 555 mm x 370 mm (6.69 in. x 21.85 in. x 14.57 in.)
Weight without packaging [kg(lb)]
2.76 kg (6.08 lb)
Weight with packaging [kg(lb)]
5.65 kg (12.46 lb)
Long-term operating temperature [°C(°F)]
–40°C to +70°C (–40°F to +158°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-term operating relative humidity [RH]
Operating humidity: 0% RH to 100% RH
Storage humidity: 5% RH to 95% RH (non-condensing)
Radio interface
Built-in directional antennas
Antenna gain
2.4 GHz:
10 dBi/chain (peak value)
10 dBi (combined gain)
5 GHz:
11 dBi/chain (peak value)
10 dBi (combined gain)
Operating frequency band
2.4GHz,5GHz
Ingress protection level (dustproof/waterproof)
IP68
Power supply mode
PoE,DC power adapter
Rated input voltage [V]
DC: 48 V
PoE: 802.3bt/at/af
