IdeaHub B3-86Part number: 55150939

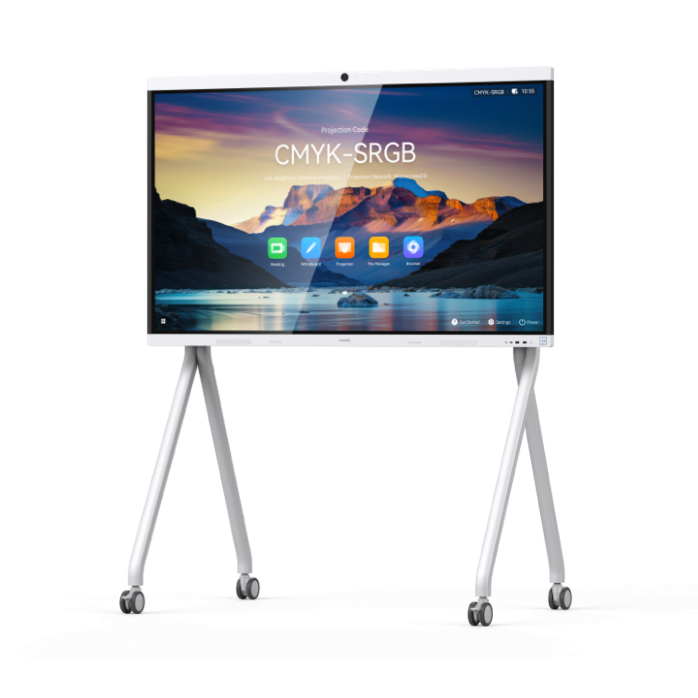

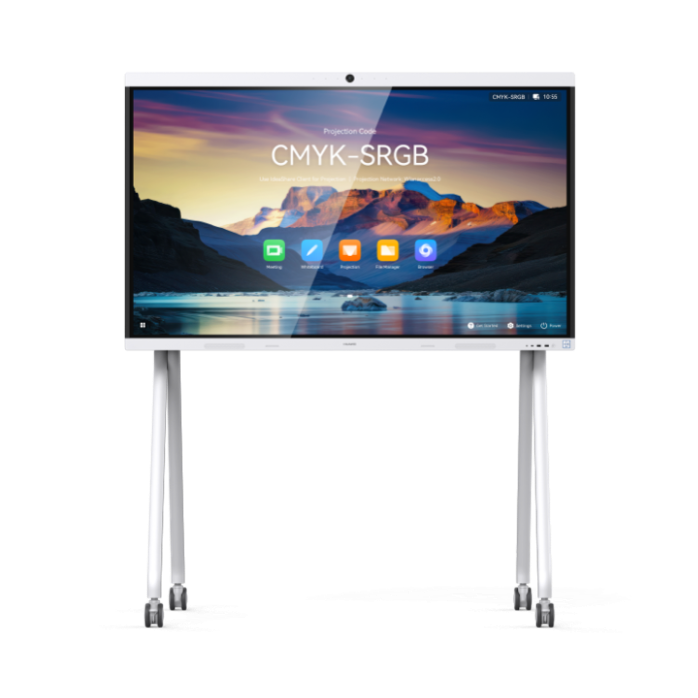

HUAWEI IdeaHub B3,IHB3-86SA,Intelligent Collaboration Device 86-inch infrared screen,Jade white,overseas
Product specifications
| Product name | IdeaHub B3 |
| Product model | 86": IHB3-86SA |
| Product dimensions(H x W x D) | 86": 1180.6 mm x 1953.0 mm x 91.8 mm |
| Package dimensions (H x W x D) | 86": 1300 mm x 2090 mm x 250 mm |
| Net/Gross weight (including the package) | 86": 63.0 kg/74.5 kg |
| OPS | Optional |
| Backlight type | D-LED |
| Screen Lamination | Zero-gap bonding |
| Latency | 16 ms |
| Touch sensing distance | ≤ 1.5 mm |
| Resolution | 4K |
| Lens cap for privacy protection | × |
| Horizontal FoV | 80° |
| TV distortion | ＜2% |
| Speaker frequency domain | 100 Hz to 20 kHz |
| Number of speaker units | 4 |
| Speaker total power | 30W |
| Sound pickup angle | 180° |
| Sound pickup distance | 10m |
| Microphone frequency domain | 100 Hz to 20 kHz |
| Quantity of Microphone | 6 |
| Native meeting apps | Huawei Cloud Meeting and WeLink |
| Dual streams (audio/video + data sharing) | 1080p30fps+1080p15fps/4K3fps |
| BYOM | √ |
| Auto-Framing | √ |
| Intelligent tracking | √ |
| CPU | 8-core |
| RAM | 8 GB |
| Flash | 64 GB |
| OS | HarmonyOS, Windows (OPS required) |
| Wi-Fi module | Wi-Fi 6 |
| Wi-Fi frequency | 2.4 GHz + 5 GHz |
| NFC | √ |
| Port | Front-panel ports: 1 x Type-C/2 x USB 3.0 Side-panel ports: 1 x 3.5mm LINE IN/1 x 3.5mm LINE OUT 2 x HDMI IN/1 x HDMI OUT 1 x USB 3.0 1 x RJ45 (10/100/1000 Mbit/s LAN) 1 x COM port |
