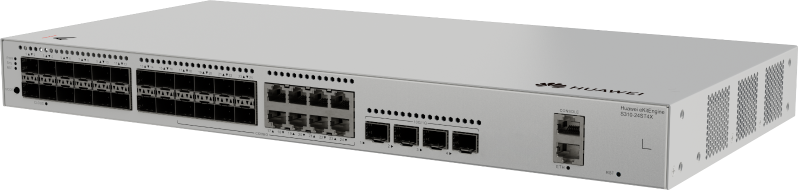

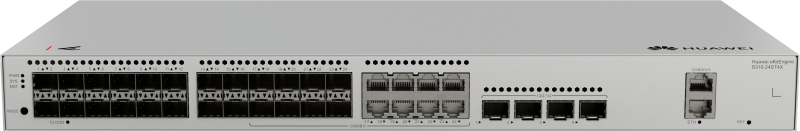

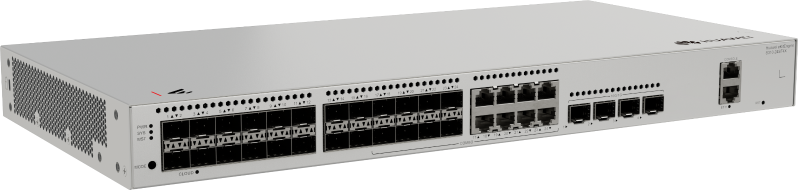

S310-24ST4X24 x GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP, 4*10GE SFP+ ports | built-in AC power | Packet forwarding rate: 96 Mpps | Switching capacity: 128 Gbit/s
View More
| Switching capacity | 128 Gbit/s |
| Packet forwarding rate | 96 Mpps |
| GE SFP | 16 (1G/100M) |
| GE Combo (RJ45 + SFP) | 8 (RJ45: 1G/100M/10M) (SFP: 1G/100M) |
| 10G SFP+ | 4 (10G/1G) |
| iStack | Up to 4 switches of the same series in a stack |
| Certification | EMC certification Safety certification Manufacturing certification |
| Static power consumption [W] | 17.57 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Installation type | Rack mounting,Desk mounting,Wall mounting |
| Weight without packaging [kg(lb)] | 2.9 kg (6.39 lb) |
| Weight with packaging [kg(lb)] | 3.55 kg (7.83 lb) |
| Typical power consumption [W] | 32.6 |
| Maximum power consumption [W] | 41.7 |
| Number of fans modules | 2 |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | AC built-in |
| Input voltage range [V] | - AC input: 90 V AC to 264 V AC; 47 Hz to 63 Hz - High-voltage DC input: 88 V DC to 300 V DC |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
