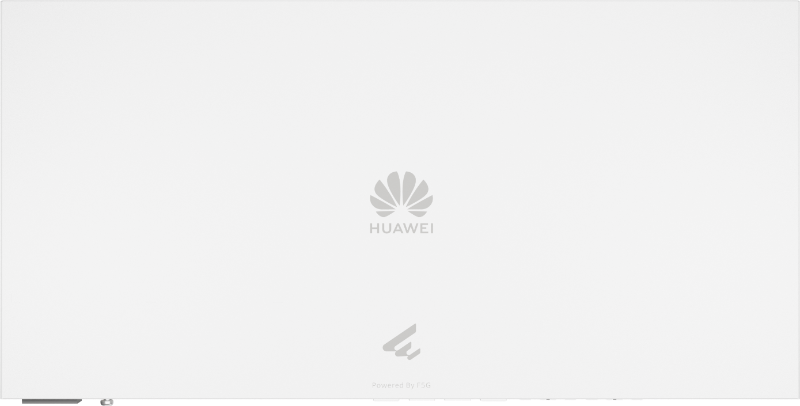

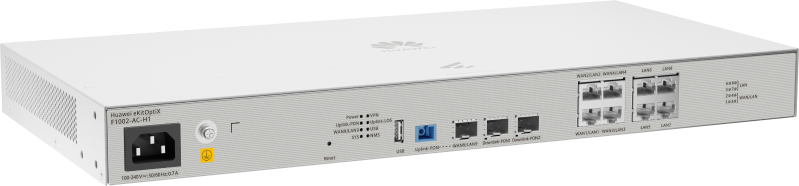

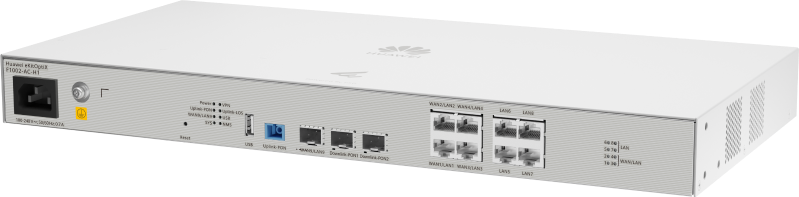

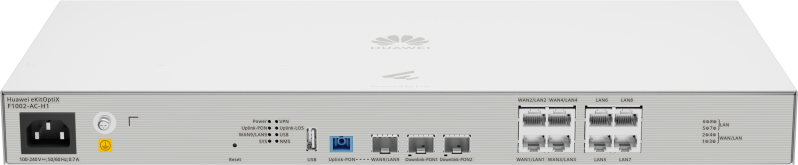

eKitOptiX F1002-AC-H1 optical gateway,Uplink SFPPart number: 02234EER
eKitOptiX F1002-AC-H1 optical gateway,Uplink SFP(XGE),Downlink 8*GE+2*SFP(GPON)+1*USB3.0,AC,Europe Plug adapter
Product specifications
| Dimensions (W x D x H) | 442mm × 220mm × 43.6mm |
| NNI | 1 × XGS-PON/XG-PON(BOB) or 1 × 10 GE(SFP)(WAN/LAN multiplexing) 4 × GE（WAN/LAN multiplexing） |
| UNI | 2 × XGS-PON&GPON Combo/GPON(SFP) + 8 × GE + 1 × USB3.0* NOTE *: plug-and-play USB port reserved for users. NOTE WAN1/LAN1~WAN4/LAN4 are WAN/LAN multiplexing. 1 × 10GE(SFP)(WAN/LAN multiplexing) |
| Rated power supply | AC: 100 – 240V AC, 50/60 Hz, 0.7 A |
| Static power consumption | 14.71 W |
| Maximum power consumption | 24.62 W |
| Operating temperature | -10°C to +55°C |
| Operating humidity | 5% RH – 95% RH, non-condensing |
| Weight (excluding adapter) | About 2.25kg |
| Protection rating | IP20 |
| Surge protection | AC power supply: 6 kV in common mode and 6 kV in differential mode GE: 4 kV in common mode |

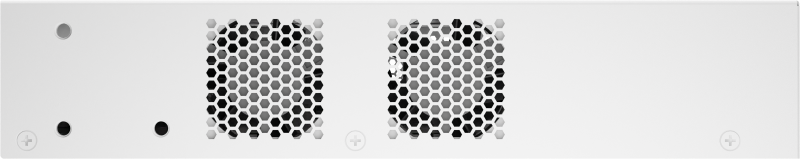

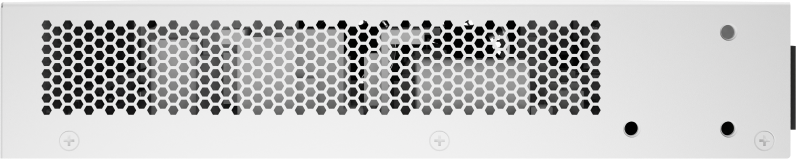

| Heat dissipation | Fan cooling |
| Installation mode | Desktop, 19-inch cabinet, and network box |
