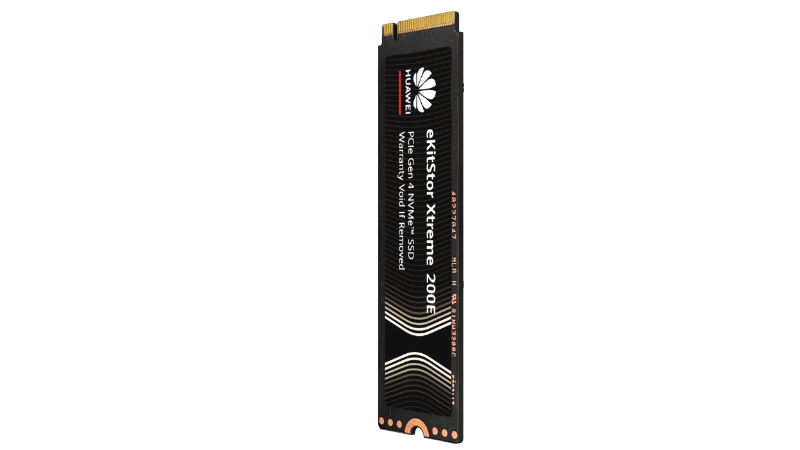

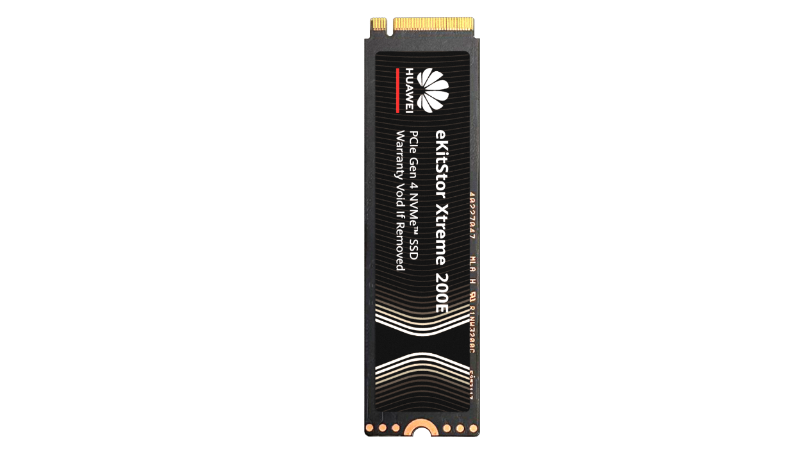

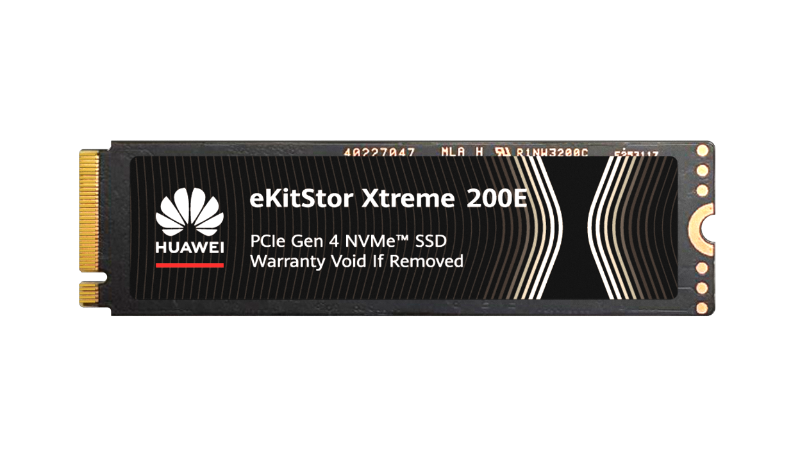

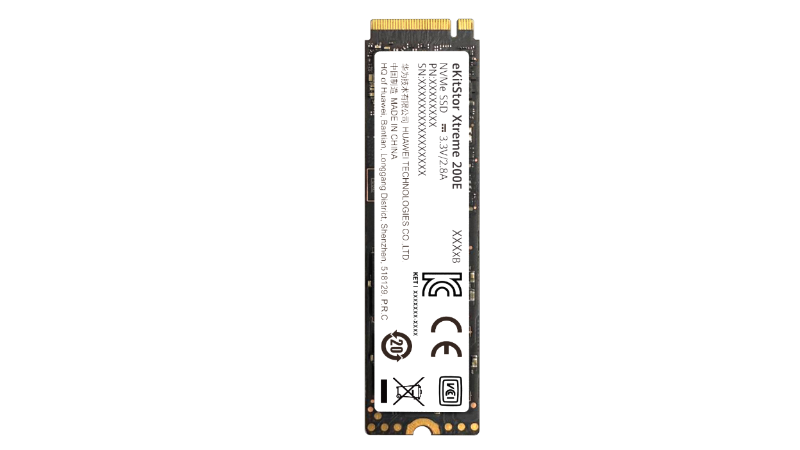

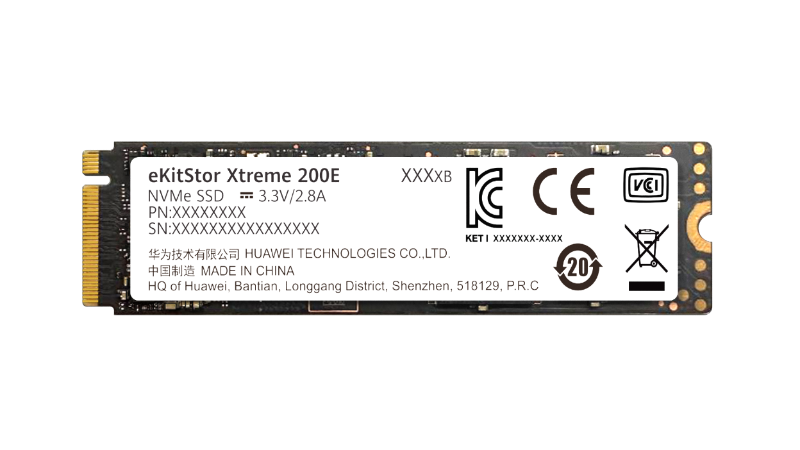

eKitStor Xtreme 200E
Part number: 02357DWX
eKitStor Xtreme 200E (M.2 NVMe SSD),PCIe 4.0,1T,2280
Product specifications
Model
eKitStor Xtreme 200E
Form Factor
M.2 2280
Interface
PCIe Gen 4.0 x4， NVMe 2.0
Feature
PCIe Gen 4 interface with up to 4 lanes
Compliant with NVMe Revision 2.0
Support for Host Memory Buffer (HMB), S.M.A.R.T
Capacity
512GB/1TB
Sequential Read (Max. MB/s)
6600/7000
Sequential Write (Max. MB/s)
3400/6500
Random Read 4K (Max. IOPS)
500K/900K
Random Write 4K (Max. IOPS)
800K/1000K
Active (Max. RMS) - Read
5.50W/5.50W
Active (Max. RMS) - Write
4.50W/4.50W
L1.2
3mW
Reliability
1,500,000 hours
Total Bytes Written (TBW)
200TB/400TB
Temperature (Operating)
0°C to 70°C
Temperature (Non-operating)
–40°C to 85°C
Humidity
5% to 95%, non-condensing
Vibration (Non-operating)
20~2000Hz, 20G
Shock (Non-operating)
1,500 G @ 0.5 ms half sine
Height (mm)
Max. 2.70
Width (mm)
22.00±0.15
Length (mm)
80.00±0.15
Weight (g)
Max. 8
Certification
RoHS, CE, WEEE, and VCCI
Notes
1. 1 GB = 1 billion bytes; 1 TB = 1 trillion bytes Actual user capacity may be less depending on the operating system.
2. 1 MB/s = 1 million bytes per second.
3. Test conditions: Performance tests are based on the CrystalDiskMark 7.0.0 benchmark using Intel Ultra 7 16-core processor, 32 GB DDR4 memory, and Windows 11 x64 operating system. Based on internal testing, performance may vary depending on the host device, usage conditions, disk capacity, and other factors.
