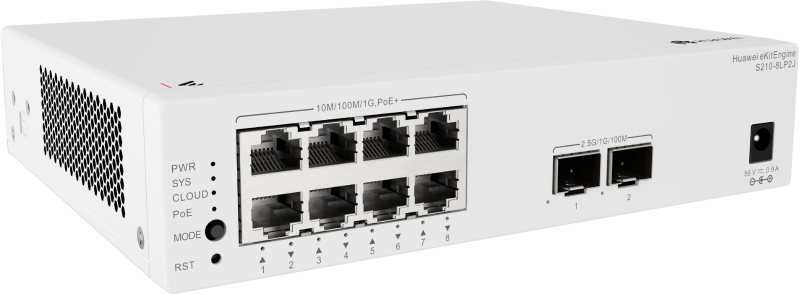

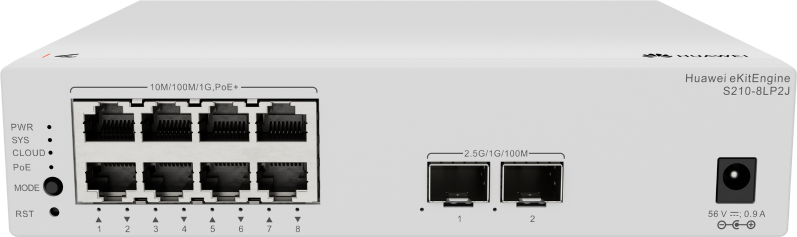

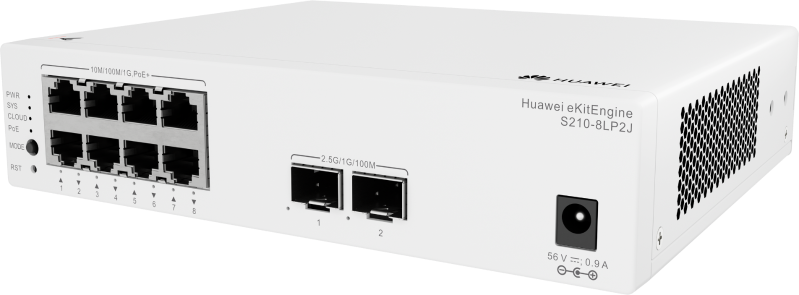

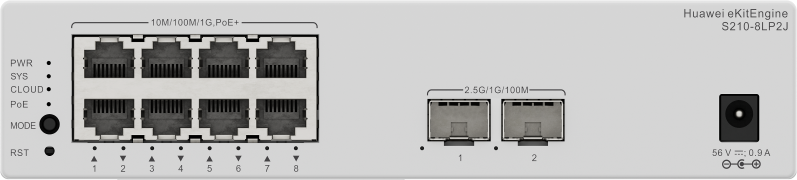

S210-8LP2J S210-8LP2J (8*10/100/1000BASE-T ports (32W PoE+), 2*2.5GE SFP ports, with 1*AC power adapter, Fanless)
View More
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Heat dissipation mode | Natural heat dissipation |
| Chassis height [U] | 1 |
| GE RJ45 | 8 (PoE+) (1G/100M/10M) |
| 2.5G SFP | 2 (2.5G/1G/100M) |
| PoE | Supported |
| Maximum PoE power consumption [W] | 32 |
| Certification | EMC certification Safety certification Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 7.15 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 195 mm x 160 mm (1.72 in. x 7.68 in. x 6.30 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 195 mm x 166.2 mm (1.72 in. x 7.68 in. x 6.54 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 116.0 mm x 285.0 mm x 300.0 mm (4.57 in. x 11.22 in. x 11.81 in.) |
| Installation type | Desk mounting,Wall mounting |
| PoE+ power interfaces | 8 |
| Full load PoE power consumption 30W (802.3at) | 1 |
| Full load PoE power consumption 15.4W (802.3af) | 2 |
| Weight without packaging [kg(lb)] | 1.35 kg (2.98 lb) |
| Weight with packaging [kg(lb)] | 1.83 kg (4.03 lb) |
| Typical power consumption [W] | 13.14 |
| Maximum power consumption [W] | - Without PoE: 13.60 W (device), 15.59 W (device + adapter) - Full PoE load: 55.82 W (PoE: 32 W) |
| Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | Power adapter |
| Input voltage range [V] | Power adapter input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
