HUAWEI eKit IdeaHub Board 3 Base 65

Product

Product/

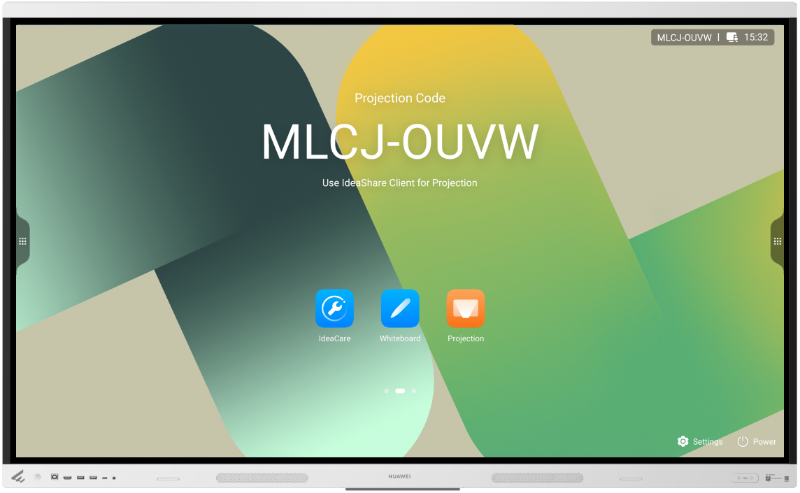

IdeaHub Board 3 Base 65

Part number: 55151441

HUAWEI IdeaHub Board 3 Base,IHB3-65AA,Intelligent Collaboration Device 65-inch infrared screen,Jade white,overseas

Product specifications

Product name	IdeaHub Board 3 Base
Product model	65": IHB3-65AA 86": IHВ3-86AA
Product dimensions(H x W x D)	65": 924.7mm x 1484.5mm x 90mm 86": 1188.9mm x 1953.0mm x 90mm
Package dimensions (H x W x D)	65": 1030mm x 1620mm x 210mm 86": 1291mm x 2090mm x 215mm
Net/Gross weight (including the package)	65": 38.0 kg; 48.0 kg 86": 64.0 kg; 82.0 kg
OPS	Required
Screen Resolution	4K (3840 x 2160 pixels)
ScreenBacklight type	D-LED
Screen Lamination	Zero-gap bonding
Writing Latency	25ms
Speaker frequency domain	90 Hz to 20 kHz
Number of speaker units	2 x (tweeter + full-range unit) + 1 x woofer
Speaker total power	60 W
Meeting apps	Third-party meeting apps (External camera and mic required)
CPU	8-core
RAM	8 GB
Flash	128 GB
OS	Android, Windows (OPS required)
Wi-Fi module	Wi-Fi 5+Wi-Fi 6(OPS)
Wi-Fi frequency	2.4 GHz + 5 GHz
Bluetooth	√
Port	Front-panel ports: Type-A 3.0 x 2;Type-B 2.0 x 1;Type-C x 1 (支持65W快充）;HDMI IN x 1; Side-panel ports: Type-B 2.0 x 1;COM port x 1;3.5mm Line-in x 1;3.5mm Line-out x 1; Android OPS ports：Type-A 3.0 x 3;Type-A 2.0 x 1;Type-C x 1;HDMI OUT x 1;HDMI IN x 1;RJ45 IN x 1;RJ45 OUT x 1
