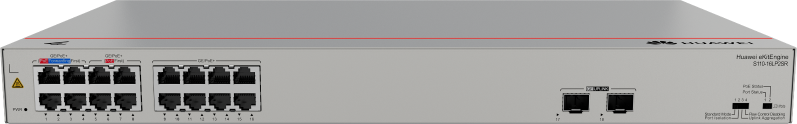

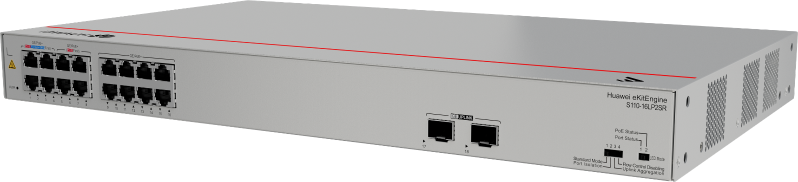

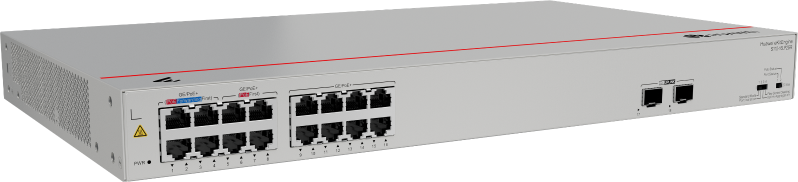

S110-16LP2SR
S110-16LP2SR
Part number: 98012197
16 x 10/100/1000BASE-T ports, 2 x GE SFP ports | PoE+ | Packet forwarding rate: 26.78 Mpps | Switching capacity: 36 Gbit/s
Product specifications
Installation typeRack mounting,Desk mounting,Wall mounting
Maximum PoE power consumption [W]124
GE RJ4516 (PoE+) (1G/100M/10M)
Packet forwarding rate26.78 Mpps
Switching capacity36 Gbit/s
Dimensions with packaging (H x W x D) [mm(in.)]90.0 mm x 555.0 mm x 400.0 mm (3.54 in. x 21.85 in. x 15.75 in.)
Dimensions without packaging (H x W x D) [mm(in.)]Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 260.0 mm (1.72 in. x 17.40 in. x 10.24 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 267.0 mm (1.72 in. x 17.40 in. x 10.51 in.)
Input voltage range [V]AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz
Power supply modeAC built-in
Maximum power consumption [W]Without PoE: 22.0 W Full PoE load: 160.0 W (PoE: 124 W)
Weight with packaging [kg(lb)]3.7 kg (8.16 lb)
Weight without packaging [kg(lb)]3.0 kg (6.61 lb)
